PROTOCO2LTM



An essential component for successful Virtual Colonoscopy



PROTOCO2LTM is a unique system that fully automates the insufflation process, freeing staff for other duties. Since CO2 is rapidly absorbed, insufflation with CO2 results in improved patient comfort after the procedure.

An ACRIN CT-Colonography Trial Standard1



Virtual Colonoscopy, or CT Colonography, is becoming increasingly accepted as a screening method for colorectal cancer. The American Cancer Society has included Virtual Colonoscopy in its Guideline on Screening and Surveillance for the Early Detection of Colorectal Cancer and Adenomatous Polyps as an acceptable option for Colorectal Cancer Screening.2



Optimal colonic distention is a critical requirement for obtaining an optimal Virtual Colonoscopy study.3



Advantages to Automated Insufflation with Carbon Dioxide



Patient Comfort: Carbon dioxide is more rapidly resorbed than room air and may improve patient comfort after completion of the examination.3



Consistent Distension: Automated insufflation to a constant pressure takes the guesswork out of determining if the patient is adequately distended.
Productivity: Automated insufflation may decrease the demands on staff time.3





PROTOCO2LTM INSUFFLATION SYSTEM



  • Automated insufflation helps improve productivity by freeing up practitioner3

  • Regulated pressure avoids spikes and minimizes patient discomfort that can occur with hand insufflation5

  • Over-pressure alarms and safety shutdown features help assure patient safety

  • Pressure can be adjusted for different patient requirements or during a procedure

  • No special utilities required: PROTOCO2LTM uses standard medical grade (USP) D or E size carbon dioxide cylinders and connects to standard hospital electrical receptacle

  • PROTOCO2LTM displays instantaneous gas pressure, records the total volume delivered during the procedure, and alerts the operator when the CO2 cylinder is low

  • Accessory cart features storage for CO2 cylinders and holder for administration set





PROTOCO2LTM ADMINISTRATION SET



Protocol 2 Administration Set



  • Simple connection and removal from PROTOCO2LTM Insufflator

  • In-line fluid trap captures colon effluent and removes it from the "path" of the carbon dioxide for proper insufflation

  • Hydrophobic filter helps protect the PROTOCO2LTM Insufflator from cross-contamination





COMFORT AND SAFETY

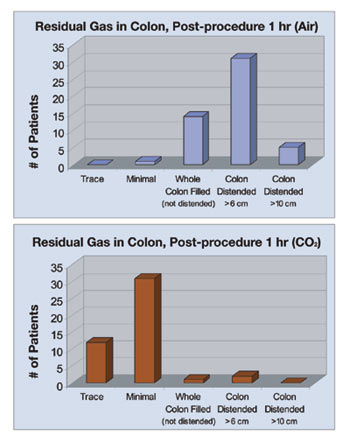

Residual gas in colon 1 hour post-procedure table



Rapid absorption of CO2 results in improved comfort after the procedure, as compared with room air insufflation.3, 4, 5

Automated low-pressure insufflation may reduce colonic spasm as compared with manual methods, particularly in segments with advanced diverticular disease.5

Helps ensure patient safety through redundant pressure relief valves and automatic flow stop features, which protect against over-insufflation.

A choice of tips for rectal administration allows the practitioner to select the most comfortable tip for the patient.





In our experience, we have found that automated CO2 delivery is not only safe but also results in improved colonic distention compared with manual techniques and also that use of CO2 compared with room air results in less post procedural discomfort." 6

– Pickhardt PJ. Radiology 2006; 239 (2):313-316.





A study on minimizing post-colonoscopy abdominal pain showed that 1 hour after colonoscopy, a majority of patients insufflated with room air had significant residual gas in the colon. The study showed that 94% of patients insufflated with carbon dioxide had only trace to minimal residual gas.7





CONSISTENCY



Glowing x-ray image



Regulated pressure gradually distends the colon, and maintains that pressure for the duration of the study.

Automated insufflation with CO2 results in more consistent distention and less variability from technologist to technologist.8

Improved distention, as compared to manual room air insufflation, has been shown in two clinical trials.4, 8

Volume display allows the monitoring and recording of the volume of CO2 used, unlike room air insufflation, where the amount of air introduced is not evident.





We found significantly better luminal distention overall using automated administration than using the manual method." 4

– Burling D, et al. AJR 2006; 186:96-103.







PRODUCTIVITY



Insufflation system



Automated operation helps reduce staff time during insufflation process.3

Replaces gas lost during the procedure automatically.
Visual displays allow quick reference of pressure and volume, and alerts the operator when the CO2 cylinder is low.

Adjustable pressure up to 25 mmHg allows for user control when desired.





The CT technologists at my institution unanimously prefer the automated CO2 technique over manual methods. They cite a more clearcut point to begin scanning, a diminished need for coaching patients, and decreased operator dependence." 5

– Pickhardt P.J. AJR 2007; 189:290-298.

Contact us


Please fill out the form below and we will get back to you.

By checking this box and clicking the submit button of this page, I certify that I am a healthcare professional, and give permission for Bracco Imaging S.p.A., or parties acting on its behalf, to contact me with information regarding Bracco Imaging S.p.A., products and solutions, invitations to events and seminars, industry updates and other notifications. I understand that the information I provide will not be given to anyone outside Bracco Imaging S.p.A., except for the agents or representatives processing this request.

Different countries may have specific processes in place to handle reports of adverse reactions. To report an adverse reaction related to Bracco products, you can find specific contacts and information selecting the page "Pharmacovigilance" of your country.

DISCLAIMER – IMPORTANT SAFETY INFORMATION



The PROTOCO2L™ Colon Insufflator administers and regulates carbon dioxide as a distention media to the colon during CT Colonography (CTC or Virtual Colonoscopy) and conventional Colonoscopy.



The PROTOCO2L™ Colon Insufflator should be used only when colon insufflation is indicated, and should therefore not be used for any other treatments. It should only be used under the direct guidance of a physician experienced in colon insufflation.
This device is contraindicated for hysteroscopic insufflation, i.e., it must not be used for intrauterine distention.



This product should not be used in patients with known or suspected colonic perforation or toxic megacolon. It should not be used within 6 days of large forceps or "hot" biopsy, or snare polypectomy.
Do not use this product in a colostomy stoma.



Do not use this product following recent rectal surgery or low rectal anastomosis, or when proctitis or other rectal conditions such as inflammatory or neoplastic diseases are suspected.
